Heap Data Structure

In this article, you will learn about Heap data structure, its operations, implementations and applications

Heap is a tree-based data structure in which all nodes in the tree are in the specific order. There are 2 types of heap, typically:

  • Max Heap: all parent node’s values are greater than or equal to children node’s values, root node value is the largest

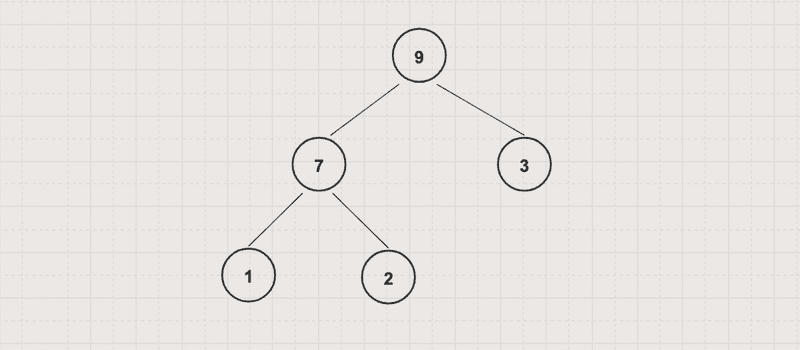

a max heap data structure
  • Min Heap: all parent node’s values are less than or equal to children node’s values, root node value is the smallest

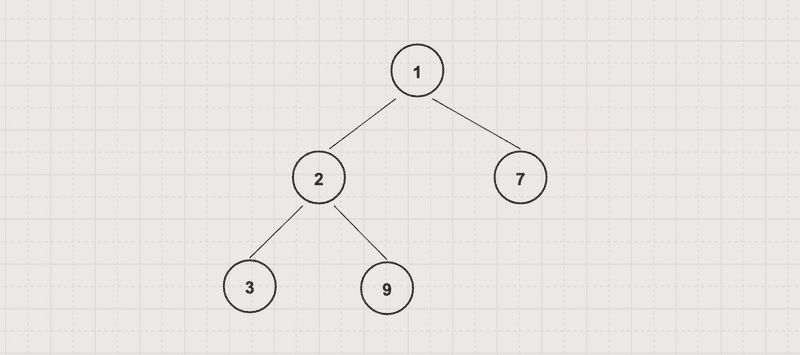

a min heap data structure

Basic operations

  • insert aka push, add a new node into the heap
  • remove aka pop, retrieves and removes the min or the max node of the heap
  • examine aka peek, retrieves, but does not remove, the min or the max node of the heap

Internal operations

  • heapify, maintains max or min-heap property (all parent node’s values should be greater/less than or equal to the child node’s values)

Implementations

A common implementation of a heap is the binary heap which based on binary tree data structure

You can implement a binary heap with either a static array (capacity restricted) or a dynamic array

Binary Max Heap implementation example with Static Array

  • Represented by 1-based integer array A[N+1]
  • With a node A[k] (1<=k<=N)

    • Its parent is A[k/2]
    • Left child is A[k*2] (k*2 <= N)
    • Right child is A[k*2+1] (k*2+1 <= N)
  • A[1] is root node, A[0] is Integer.MAX_VALUE

MaxHeapByArray.java

package com.hellokoding.datastructure;

public class MaxHeapByArray {
    private int[] heap;
    private int size;

    public MaxHeapByArray(int capacity) {
        this.heap = new int[capacity+1];
        this.heap[0] = Integer.MAX_VALUE;
        this.size = 0;
    }

    private void swap(int i, int j) {
        int tmp = heap[i];
        heap[i] = heap[j];
        heap[j] = tmp;
    }

    private void heapifyDown(int k) {
        int largest = k;
        int leftIndex = 2*k;
        int rightIndex = 2*k + 1;

        if (leftIndex <= heap.length && heap[leftIndex] > heap[largest]){
            largest = leftIndex;
        }

        if (rightIndex <= heap.length && heap[rightIndex] > heap[largest]) {
            largest = rightIndex;
        }

        if (largest != k) {
            swap(k, largest);
            heapifyDown(largest);
        }
    }

    private void heapifyUp(int k) {
        while (heap[k] > heap[k/2]) {
            swap(k , k/2);
            k = k/2;
        }
    }

    private void print(){
        for (int i = 1; i <= size/2; i++) {
            System.out.printf("Parent: %d, Left child: %d, Right child: %d %s", heap[i], heap[i*2], heap[i*2+1], System.lineSeparator());
        }
    }

    public void push(int x) {
        heap[++size] = x;
        heapifyUp(size);
    }

    public int pop() {
        int head = heap[1];
        heap[1] = heap[size--];
        heapifyDown(1);

        return head;
    }

    public int peek() {
        return heap[1];
    }

    public static void main(String[] args) {
        MaxHeapByArray maxHeap = new MaxHeapByArray(5);
        maxHeap.push(3);
        maxHeap.push(1);
        maxHeap.push(7);
        maxHeap.push(2);
        maxHeap.push(9);

        maxHeap.print();

        System.out.println(maxHeap.peek());
        System.out.println(maxHeap.pop());
        System.out.println(maxHeap.peek());
    }
}

Binary Min Heap implementation example with Static Array

  • Represented by 1-based integer array A[N+1]
  • With a node A[k] (1<=k<=N)

    • Its parent is A[k/2]
    • Left child is A[k*2] (k*2 <= N)
    • Right child is A[k*2+1] (k*2+1 <= N)
  • A[1] is root node, A[0] is Integer.MIN_VALUE

MinHeapByArray.java

package com.hellokoding.datastructure;

public class MinHeapByArray {
    private int[] heap;
    private int size;

    public MinHeapByArray(int capacity) {
        this.heap = new int[capacity+1];
        this.heap[0] = Integer.MIN_VALUE;
        this.size = 0;
    }

    private void swap(int i, int j) {
        int tmp = heap[i];
        heap[i] = heap[j];
        heap[j] = tmp;
    }

    private void heapifyDown(int k) {
        int smallest = k;
        int leftIndex = 2*k;
        int rightIndex = 2*k + 1;

        if (leftIndex <= heap.length && heap[leftIndex] < heap[smallest]){
            smallest = leftIndex;
        }

        if (rightIndex <= heap.length && heap[rightIndex] < heap[smallest]) {
            smallest = rightIndex;
        }

        if (smallest != k) {
            swap(k, smallest);
            heapifyDown(smallest);
        }
    }

    private void heapifyUp(int k) {
        while (heap[k] < heap[k/2]) {
            swap(k , k/2);
            k = k/2;
        }
    }

    private void print(){
        for (int i = 1; i <= size/2; i++) {
            System.out.printf("Parent: %d, Left child: %d, Right child: %d %s", heap[i], heap[i*2], heap[i*2+1], System.lineSeparator());
        }
    }

    public void push(int x) {
        heap[++size] = x;
        heapifyUp(size);
    }

    public int pop() {
        int head = heap[1];
        heap[1] = heap[size--];
        heapifyDown(1);

        return head;
    }

    public int peek() {
        return heap[1];
    }

    public boolean isEmpty() {
        return size == 0;
    }

    public static void main(String[] args) {
        MinHeapByArray minHeap = new MinHeapByArray(5);
        minHeap.push(3);
        minHeap.push(1);
        minHeap.push(7);
        minHeap.push(2);
        minHeap.push(9);

        minHeap.print();

        System.out.println(minHeap.peek());
        System.out.println(minHeap.pop());
        System.out.println(minHeap.peek());
    }
}

Applications

  • Heaps can be used to implement Priority Queues
  • Find the shortest paths between vertices in a Graph Data Structure

    The shortest path is a path between two vertices in a graph such that the total sum of the weights of the constituent edges is minimum

    You can implement an algorithm to find the shortest path by using a Min-Heap and Dijkstra algorithm

    Learn more

Heaps in Java

In Java, the binary heap data structure is used to implement priority queues including java.util.PriorityQueue and java.util.concurrent.PriorityBlockingQueue

Learn more
